Description
Product Overview

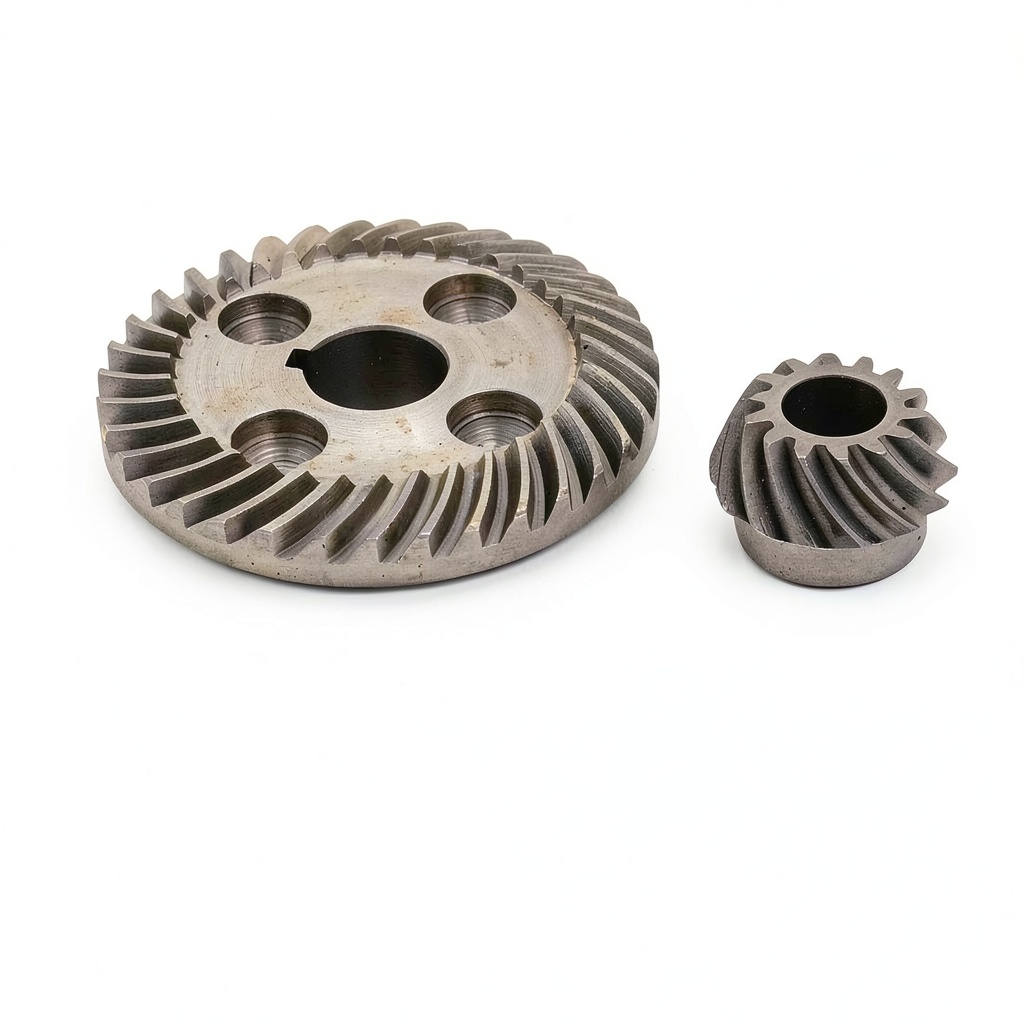

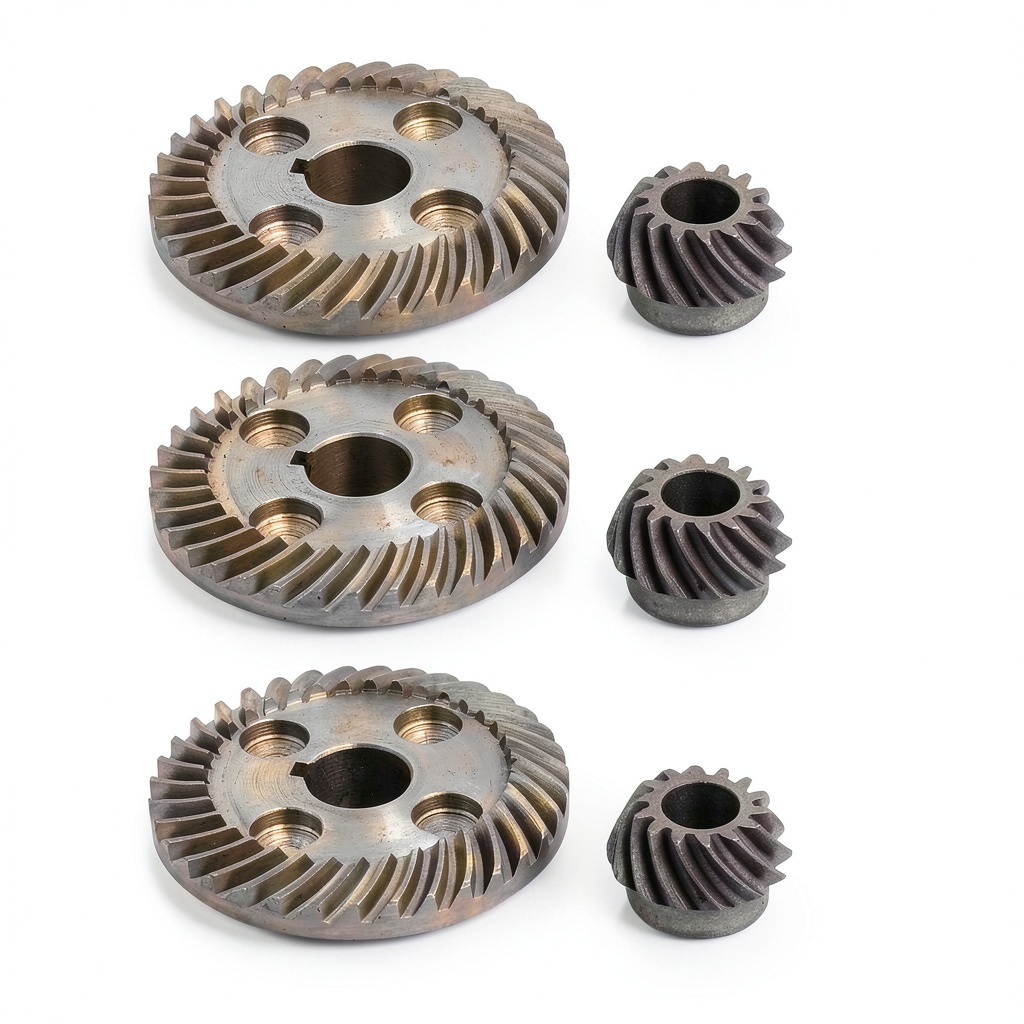

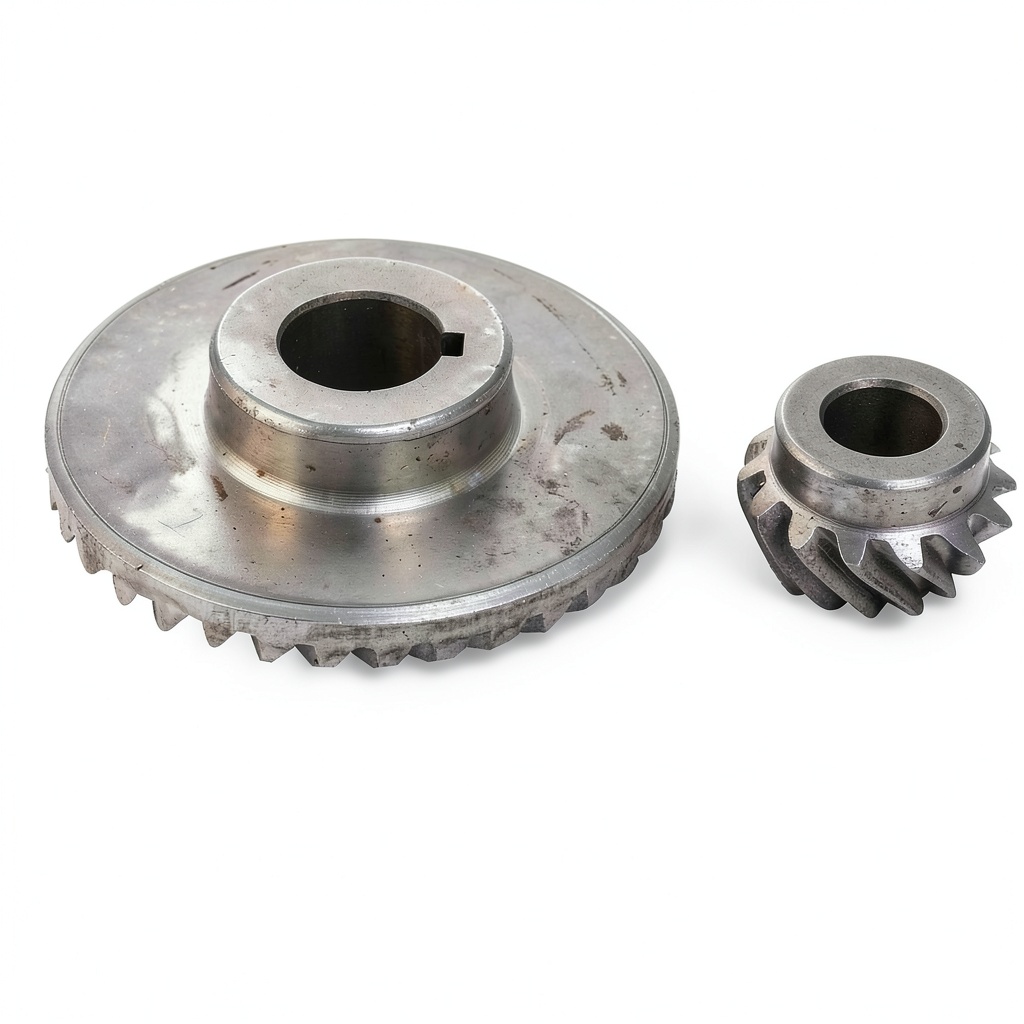

The uxcell 90 Degree Shaft Angle Replacement Part Spiral Bevel Helical Gear Set is engineered for high‑precision applications where reliable power transmission and accurate angular positioning are critical. Each set contains three meticulously machined metal gears: a robust ring gear with a 35‑tooth configuration, a compact pinion gear featuring 14 teeth, and a matching spacer that ensures perfect alignment during installation. Constructed from high‑grade alloy steel, the gears exhibit superior hardness and wear resistance, delivering long‑term durability even under demanding industrial conditions.
Key dimensions are carefully balanced to provide optimal performance while maintaining a lightweight profile. The ring gear measures 44 mm in outer diameter with a 13 mm width, and its central bore is precisely 11 mm to accommodate standard shafts. The pinion gear, sized at 19 mm × 12.5 mm, features an 8 mm bore for seamless coupling. Both components are finished with a smooth, low‑friction surface that minimizes heat buildup and reduces the need for frequent lubrication.
Usage
This gear set is ideally suited for a wide range of mechanical and industrial environments. Whether you are retrofitting an existing machine, building a custom CNC apparatus, or repairing a broken transmission, the 90 Degree spiral bevel configuration offers a reliable solution for converting rotational motion into precise angular displacement. The set excels in applications such as robotic arms, conveyor systems, agricultural equipment, and any machinery that requires a dependable change in shaft direction.
Installation is straightforward: the ring gear mounts onto the primary shaft, the pinion engages with the secondary shaft, and the spacer maintains the correct axial distance. The design tolerances ensure minimal backlash, which is essential for high‑precision tasks like CNC machining or automated assembly lines. Users can also employ the gear set in hobbyist projects, including 3D‑printed mechanisms or educational kits that demonstrate fundamental principles of gear geometry.
Why Choose Us
Choosing the uxcell 90 Degree Spiral Bevel Gear Set means investing in quality, reliability, and performance. Our manufacturing process adheres to strict ISO standards, guaranteeing that each gear meets exact dimensional specifications and surface finish requirements. The use of premium alloy steel not only provides exceptional strength but also resists corrosion, extending the service life of the components even in harsh environments.
We stand behind our products with a comprehensive warranty and responsive customer support. Should you encounter any issues during installation or operation, our technical team is ready to provide guidance, troubleshooting assistance, and replacement parts if necessary. This commitment to after‑sales service distinguishes uxcell from generic alternatives and ensures that you receive the value you expect from a professional‑grade gear set.
Key Features
- High‑strength alloy steel construction delivers long‑lasting durability and wear resistance.
- Precision‑machined 35‑tooth ring gear and 14‑tooth pinion ensure smooth, low‑backlash operation.
- Compact 90 Degree spiral bevel design provides efficient shaft angle conversion for space‑constrained installations.
- Easy installation with clearly defined bore sizes and keyway dimensions for quick alignment.
- Dedicated customer support and warranty coverage give peace of mind for both industrial and DIY users.
FAQ
What size shafts are compatible with this gear set?
The ring gear features an 11 mm bore, while the pinion gear has an 8 mm bore. These dimensions accommodate standard shafts commonly used in industrial machinery and hobbyist projects.
Can this gear set be used with lubricants?
Yes. Although the gears are finished to a low‑friction surface, applying a suitable lubricant can further reduce wear and improve efficiency, especially in high‑load or high‑speed applications.
Is the gear set suitable for high‑speed applications?
The alloy steel material and precise machining allow the gear set to operate reliably at moderate to high speeds. For extreme high‑speed scenarios, ensure proper lubrication and verify that the surrounding system components are rated for the intended RPM.
Do you offer technical assistance for installation?
Absolutely. Our technical support team can provide step‑by‑step guidance, alignment tips, and troubleshooting advice to help you achieve optimal performance during installation.
What is the warranty period for this product?
The gear set comes with a one‑year limited warranty covering manufacturing defects. If any issues arise within this period, contact our support team for a replacement or repair solution.
Reviews
There are no reviews yet.
